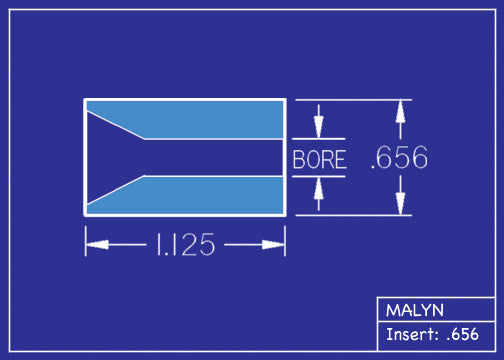

Insert Specifications:
-
Straight Bore, 21/32" OD, 1-1/8" Length
-
OAL(Overall Length): 1.125"
-

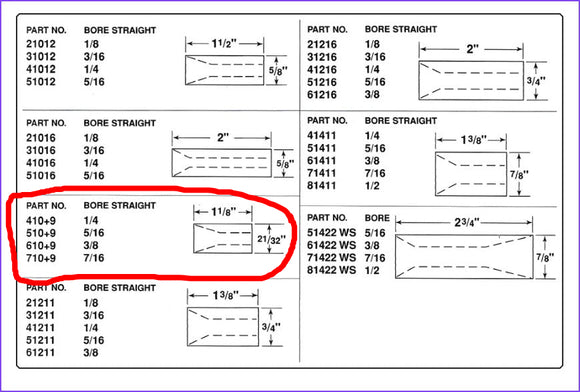

Part Numbers:
-
410+9 (1/4" Bore)
-
510+9 (5/16" Bore)
-
610+9 (3/8" Bore)
-
710+9 (7/16" Bore)
-

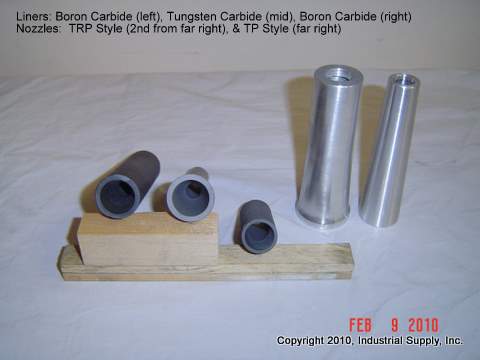

Boron Carbide Nozzle Benefits:
-
Boron Carbide Inserts Are The Longest Lasting Nozzle Inserts Commercially Available & Outlast Tungsten Carbide By 3-5 Times!
-
Longer Life = Reduced Down Time
-
Lightweight, Reduces User Fatigue
-
Made in the USA - Support American Manufacturing!
- Once you use Boron Carbide nozzles, you won't go back.
- Volume Pricing Available, just ask us! (10 or more nozzles)
Custom B4C Inserts:
- Custom Nozzle & Hot Pressing Boron Carbide Manufacturing Available
- Additional Styles, Bore Sizes and Lengths Available Upon Request.
