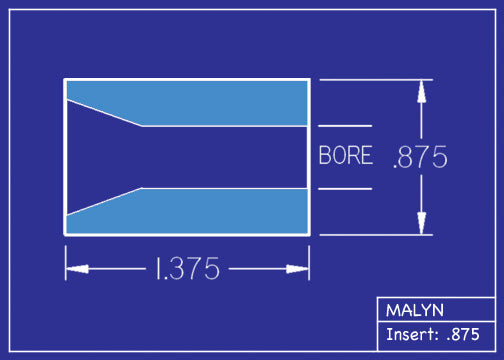

Nozzle Insert Specifications:
-
Straight Bore, 7/8" OD,
-
Overall Length (OAL): 1.375 (1-3/8")
-

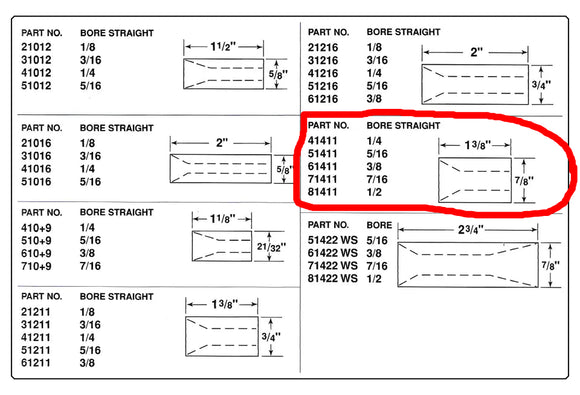

Part Numbers, 1.375" (1-3/8") Length:
-
41411 (1/4" Bore) (Boride B4S-87, Empire½ Item #500741)
-
51411 (5/16" Bore) (Clemco #5, Part No. 11935 boron; Empire½ #500751)
-
61411 (3/8" Bore) (Clemco #6, Part No. 11936 boron)
-
71411 (7/16" Bore) (Clemco #7, Part No. 11937 boron)
-
81411 (1/2" Bore) (Clemco #8, Part No. 12894 boron)
-
Boron Carbide Nozzle Benefits:
-
Boron Carbide Inserts Are The Longest Lasting Nozzle Inserts Commercially Available & Outlast Tungsten Carbide By 3-5 Times!
-
Longer Life = Reduced Down Time
-
Lightweight, Reduces User Fatigue
-
Made in the USA - Support American Manufacturing!
- Once you use Boron Carbide nozzles, you won't go back.
Custom B4C Inserts:
- Custom Nozzle & Hot Pressing Boron Carbide Manufacturing Available
- Additional Styles, Bore Sizes and Lengths Available Upon Request. We simply cannot put online all the available options, so please ask us if you do not see what you need on this site.
- Matching Service: Send us an email with your current model number, manufacturer, and quantity, and we will quote a matching nozzle.
