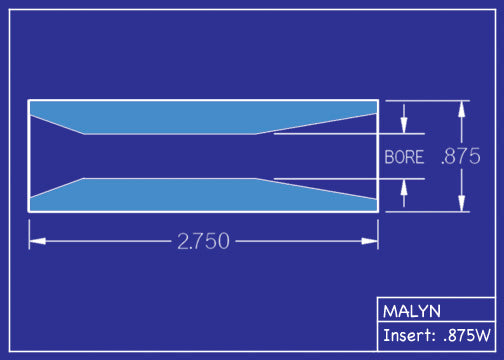

Insert Specifications:
Venturi Wide Spray Nozzle Insert, 7/8" OD,
Overall Length (OAL): 2.750 (2-3/4")

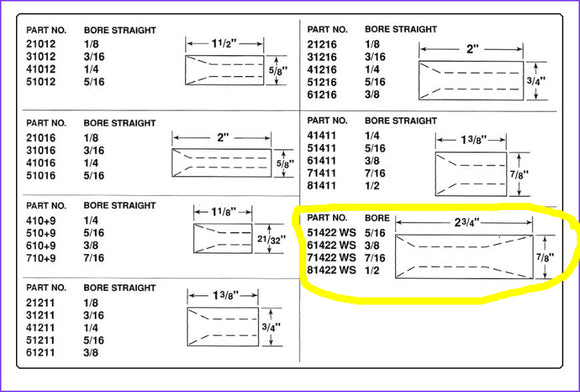

Part Numbers, 2.750" Length:
51422 WS (5/16" Bore)
61422 WS (3/8" Bore) (Clemco« #6 Wide Spray, Part No. 11934 boron. Empire #503563)
71422 WS (7/16" Bore)
81422 WS (1/2" Bore)
Boron Carbide Inserts Are The Longest Lasting Nozzle Inserts Commercially Available & Outlast Tungsten Carbide By 3-5 Times!
- Longer Life = Reduced Down Time
- Lightweight, Reduces User Fatigue
- Made in the USA - Support American Manufacturing!
Once you use Boron Carbide nozzles, you won't go back.
Custom B4C Inserts:
- Custom Nozzle & Hot Pressing Boron Carbide Manufacturing Available
- Additional Styles, Bore Sizes and Lengths Available Upon Request. We simply cannot put online all the available options, so please ask us if you do not see what you need on this site.
- Matching Service: Send us an email with your current model number, manufacturer, and quantity, and we will quote a matching nozzle.
