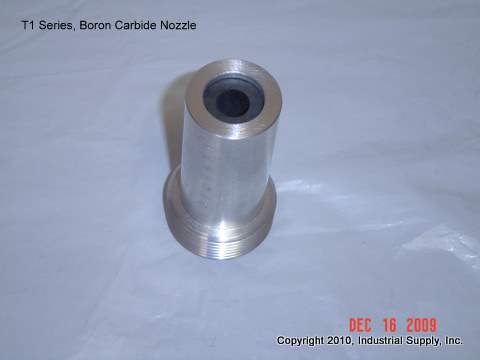

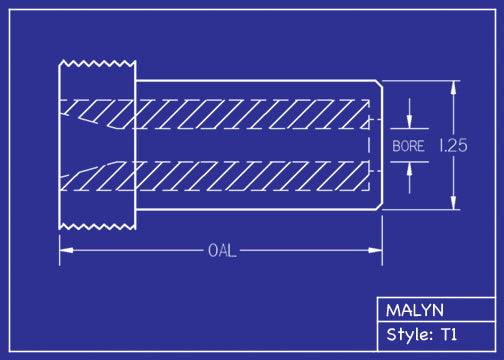

Nozzle Specifications:
-
Straight Bore 3/4" entry 1 1/4"-11 1/2 NPS thread, T1 Series
-
National Pipe Straight (NPS) Threads
- Boron Carbide Nozzle, Aluminum Jacket. Steel Jackets Available.
-

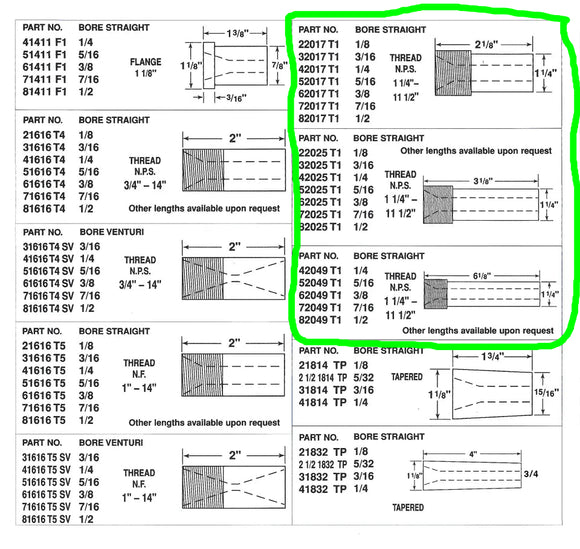

Use this page to order all T1 Series Nozzles (See pictures below):
-
2-1/8" Lengths:
-
22017 (1/8" Bore)
-
32017 (3/16" Bore)
-
42017 (1/4" Bore)
-
52017 (5/16" Bore)
-
62017 (3/8" Bore)
-
72017 (7/16" Bore)
-
82017 (1/2" Bore)
-
-
3-1/8" Lengths:
-
22025 (1/8" Bore)
-
32025 (3/16" Bore)
-
42025 (1/4" Bore)
-
52025 (5/16" Bore)
-
62025 (3/8" Bore)
-
72025 (7/16" Bore)
-
82025 (1/2" Bore)
-
-
6-1/8: Lengths: 1/4" Bore and larger:
-
42049 (1/4" Bore)
-
52049 (5/16" Bore)
-
62049 (3/8" Bore)
-
72049 (7/16" Bore)
-
82049 (1/2" Bore)
-
-
Boron Carbide Nozzle Benefits:
-
Boron Carbide Nozzles Are The Longest Lasting Nozzles Commercially Available & Outlast Tungsten Carbide By 3-5 Times!
-
Longer Life = Reduced Down Time
-
Lightweight, Reduces User Fatigue
-
Made in the USA - Support American Manufacturing!
- Once you use Boron Carbide nozzles, you won't go back.
- Volume Pricing Available, just ask us! (10 or more nozzles)
Custom Nozzles:
- Custom Nozzle & Hot Pressing Boron Carbide Manufacturing Available
- Additional Styles, Bore Sizes and Lengths Available Upon Request. We simply cannot put online all the available options, so please ask us if you do not see what you need on this site.
- Matching Service: Send us an email with your current model number, manufacturer, and quantity, and we will quote a matching nozzle.
