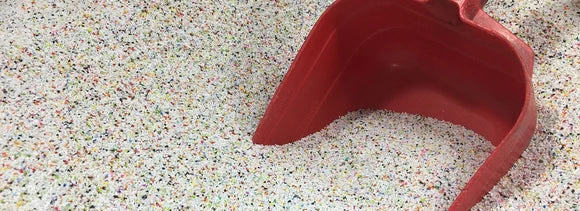

Extruder Screw Cleaning Media – Plastic Blast Media for Polymer Processing Equipment
Industrial Type III Melamine & Type II Urea Abrasives for Extrusion Screws, Injection Molding Equipment, Molds, Dies & Production Tooling
Remove Stubborn Polymer Buildup Without Unnecessary Damage to Expensive Tooling
In plastics manufacturing, hardened polymer residue, carbonized resin, pigments, additives, and processing deposits can accumulate on extruder screws, mixing elements, molds, dies, and other critical manufacturing components.
Removing these deposits is essential for maintaining product quality, preventing cross-contamination between production runs, and minimizing equipment downtime.
Plastic blasting media offers an effective, controlled cleaning alternative to aggressive mineral abrasives, mechanical scraping, and certain chemical or thermal cleaning processes.
Our industrial plastic blast media is available in Type III Melamine and Type II Urea, offering a choice of cleaning aggressiveness for different substrates and operating requirements.
These specialized abrasives are suitable for evaluation in polymer compounding facilities, plastic extrusion operations, injection molding plants, color masterbatch production, and plastics recycling facilities.
Key Benefits of Plastic Blast Media for Industrial Tooling
-
Effective deposit removal: Removes stubborn resin, polymer residue, carbonized buildup, and manufacturing contaminants.
-
Tooling protection: Offers a less aggressive alternative to conventional mineral abrasives for suitable precision tooling.
-
Reduced cleaning time: Can help shorten cleaning and maintenance cycles compared with labor-intensive manual methods.
-
Controlled cleaning: Media grade, particle size, pressure, and equipment settings can be selected for the application.
-
Reusable abrasive media: Many plastic blasting applications permit multiple cleaning cycles through properly designed reclaim systems.
-
Reduced reliance on chemical stripping: Provides a mechanical cleaning option for facilities seeking alternatives to chemical-based processes.
-
Industrial equipment compatibility: Suitable for appropriately configured enclosed pressure-blast and suction-blast equipment.
Actual cleaning performance, surface effects, reuse rates, and operating costs depend on the media, equipment, contamination, and tooling being cleaned.
Industrial Applications for Plastic Blast Media
1. Twin-Screw Extruder Cleaning & Polymer Compounding
Twin-screw extrusion systems are widely used in polymer compounding, specialty resin production, masterbatch manufacturing, and engineered thermoplastic processing.
Extruder screws, kneading blocks, mixing elements, and other removable components can accumulate tightly adhered polymer deposits during operation.
Plastic blast media can be evaluated for cleaning:
- Twin-screw extruder elements and segmented screw assemblies
- Mixing and kneading elements
- Extruder screw flights and channels
- Screw tips and related processing components
- Removable extrusion tooling
- Carbonized or degraded polymer residue
- Pigment and additive buildup
Recommended media for evaluation: Type III Melamine for stubborn deposits on compatible hard-metal tooling. Type II Urea may be appropriate when less aggressive cleaning is preferred.
2. Color Masterbatch & Pigment Concentrate Manufacturing
Color concentrate manufacturers routinely process different pigments, resins, additives, and formulations.
Residual colorants or degraded polymer deposits left on production equipment can contribute to cross-contamination during subsequent manufacturing runs.
Plastic blast media provides a mechanical cleaning option for removable extrusion and mixing components.
Typical cleaning applications:
- Extruder screw elements
- Pigment and masterbatch residue
- Mixing components
- Extrusion dies and tooling
- Production equipment undergoing color or material changes
Plastic media is particularly worth evaluating when effective cleaning must be balanced against preservation of expensive equipment.
3. Engineering Thermoplastics & High-Performance Polymer Manufacturing
Manufacturers processing engineering-grade thermoplastics may encounter persistent deposits from high-temperature processing, filled compounds, and additives.
These deposits may be difficult to remove using conventional manual cleaning techniques.
Potential applications include:
- Engineering resin processing equipment
- Extruder screws and mixing elements
- Carbonized polymer residue removal
- Filled and reinforced polymer deposits
- Die and processing-tool maintenance
Type III Melamine offers a relatively aggressive plastic media option for challenging deposits on appropriate metal substrates.
4. Plastic Recycling, Reprocessing & Pelletizing Plants
Plastic recycling and reprocessing operations handle a wide range of polymer materials, including recycled resins containing pigments, fillers, and processing contaminants.
Regular maintenance cleaning can help reduce accumulated deposits in extrusion and pelletizing systems.
Common equipment-cleaning applications:
- Recycling extruder screws
- Pelletizing equipment tooling
- Removable die components
- Reprocessing equipment
- Polymer and additive deposits
Plastic abrasive media can be considered for maintenance procedures in facilities where equipment preservation and cleaning efficiency are important.
5. Injection Molding Equipment & Screw Cleaning
Injection molding equipment can accumulate degraded resin, residual colorants, and processing deposits, particularly after material changes or extended production runs.
Plastic blasting media is an established option for cleaning suitable metal molding and processing components.
Applications include:
- Injection molding feed screws
- Screw tips and removable components
- Steel molds and mold components
- Mold cavities and accessible surfaces
- Vents and precision tooling, subject to compatibility testing
- Resin buildup and carbonized deposits
Media selection is especially important when cleaning plated, coated, polished, or dimensionally sensitive components.
6. Plastic Film, Sheet, Pipe & Profile Extrusion
Plastic film, sheet, pipe, and profile manufacturers operate extrusion equipment that may require periodic cleaning of screws, dies, and other tooling.
Applications include polyethylene, polypropylene, PVC, and other thermoplastic processing systems, subject to the characteristics of the deposits and equipment.
Potential cleaning targets include:
- Extruder feed screws
- Die heads and removable tooling
- Extrusion components
- Degraded polymer buildup
- Processing residue and additive deposits
Abrasive cleaning should be evaluated with particular care on polished dies, coatings, and precision surfaces.
7. Synthetic Fiber, Filament & Textile Polymer Processing
Manufacturers of synthetic fibers and filament materials use polymer extrusion equipment that requires careful maintenance to help maintain consistent processing conditions.
Plastic blast media may be suitable for cleaning selected removable components where polymer residue accumulates.
Applications may include extruder screws, compatible metal processing components, and accessible tooling surfaces.
Precision openings, spinnerets, and highly finished surfaces require separate engineering approval and cleaning validation.
8. Automotive Plastic Components & Engineered Resin Processing
Automotive suppliers manufacture components using engineering thermoplastics, reinforced polymers, specialty compounds, and color concentrates.
Potential plastic media applications include:
- Injection molding equipment maintenance
- Mold cleaning
- Resin buildup removal
- Compounding screw cleaning
- Processing-tool maintenance
Plastic blasting media may provide a useful cleaning option where more aggressive mineral abrasives could create unacceptable changes to the substrate.
9. Medical, Pharmaceutical & Precision Polymer Manufacturing
Precision polymer manufacturers often operate under strict contamination-control, equipment-cleaning, and product-quality requirements.
Plastic blast media may be considered for selected off-line tooling maintenance applications, provided that particle retention, contamination, residue removal, and cleaning validation requirements can be satisfied.
Applications must be assessed individually, particularly for medical-device and regulated manufacturing environments.
10. Industrial Mold, Die & Tooling Maintenance
Beyond extrusion systems, plastic blasting media is widely used for cleaning suitable industrial molds, steel components, and manufacturing tooling.
Typical applications include:
- Mold residue removal
- Hardened resin and adhesive buildup
- Die and tooling cleaning
- Steel manufacturing components
- Polymer processing equipment
- Maintenance of removable metal tooling
Choosing the Right Plastic Blasting Media
Type III Melamine – Aggressive Cleaning of Stubborn Deposits
Approximate hardness: 4.0 Mohs
Type III Melamine is among the hardest conventional granulated plastic blasting media types. It is particularly well suited for evaluation when removing stubborn deposits from compatible steel and other hard-metal components.
- Extruder screw cleaning
- Carbonized polymer residue removal
- Hardened resin deposits
- Steel mold cleaning
- Mixing and kneading elements
- Difficult industrial tooling deposits
For plants seeking faster cleaning of persistent polymer buildup, Type III Melamine is an excellent starting point for comparative testing.
Type II Urea – Moderate Cleaning Aggressiveness
Approximate hardness: 3.5 Mohs
Type II Urea is less aggressive than Type III Melamine and offers an alternative for applications requiring a more moderate cleaning action.
- General tooling maintenance
- Mold cleaning
- Selected polymer deposits
- Industrial surface cleaning
- Components requiring less aggressive media
For sensitive metal surfaces, coated components, and precision tooling, always verify cleaning compatibility before full-scale use.
Available Plastic Blast Media Mesh Sizes
Plastic blasting media is offered in multiple particle-size classifications to accommodate different cleaning requirements.
| Mesh Size |
Approximate Particle Size |
General Selection Considerations |
| 12/16 |
1.18–1.70 mm |
Coarse media for evaluating substantial deposits and suitable equipment |
| 16/20 |
0.85–1.18 mm |
Coarse industrial tooling cleaning |
| 20/30 |
0.60–0.85 mm |
Medium-coarse cleaning |
| 30/40 |
0.42–0.60 mm |
Medium-size cleaning applications |
| 40/60 |
0.25–0.42 mm |
Smaller features and finer cleaning requirements |
| 60/80 |
0.18–0.25 mm |
Fine cleaning applications |
Particle-size ranges are approximate U.S. standard sieve openings. Actual size availability and distribution depend on the selected product. Mesh size alone does not establish suitable cleaning performance.
Important: Coarse grades such as 12/16 mesh require adequate blasting equipment, nozzle clearance, and media-delivery capability.
Bulk Supply for Industrial Manufacturing
We serve industrial customers seeking plastic blast media for plant maintenance, production tooling cleaning, and recurring manufacturing applications.
- Type III Melamine media
- Type II Urea media
- Coarse through fine mesh classifications
- Industrial packaging options
- 275 lb drums, 4/pallet
- Recurring production requirements
- Sample availability for qualified industrial evaluations
- Volume pricing and freight quotations
For ongoing industrial use, contact us with your estimated monthly or annual consumption so we can evaluate the most appropriate purchasing and packaging options.
Evaluating Plastic Blast Media Against Your Current Cleaning Process
Every polymer-processing facility has different tooling, resin formulations, contamination characteristics, and cleaning requirements.
When comparing blast media, we recommend evaluating more than price per pound.
Important Performance Criteria
1. Deposit removal effectiveness
How completely does the abrasive remove polymer buildup, carbonized residue, and processing contamination?
2. Cleaning cycle time
How much operator time is required to achieve the desired cleanliness?
3. Media consumption
How many pounds of abrasive are consumed per cleaning cycle?
4. Surface preservation
Does the cleaning process maintain acceptable tooling dimensions, coatings, surface finishes, and performance?
5. Dust generation and media breakdown
How does the media perform in the existing blast cabinet and reclaim system?
6. Total cost per cleaning cycle
Consider material cost, labor, equipment downtime, media reuse, and waste handling.
Why the Lowest Price Per Pound May Not Be the Lowest Operating Cost
A less expensive blasting abrasive is not always the most economical choice.
If another media cleans faster, lasts longer, reduces rework, or better preserves expensive tooling, it may provide greater value despite a higher initial purchase price.
For manufacturing customers, total cleaning cost per component or maintenance cycle is often a more meaningful performance measure than abrasive price alone.
Frequently Asked Questions
What is the best blast media for cleaning extruder screws?
Type III Melamine is a common choice for removing stubborn polymer buildup from compatible hard-metal feed screws and extrusion components. Type II Urea may be appropriate for less demanding cleaning applications. The ideal selection depends on deposit hardness, screw material, surface finish, and required cleaning performance.
Can plastic blast media remove carbonized polymer residue?
Yes. Plastic blast media is used for removing certain carbonized resin and polymer deposits from industrial tooling. Cleaning efficiency varies with deposit thickness, polymer composition, blast parameters, and equipment configuration.
Can plastic blasting damage extruder screws?
Although plastic abrasive media is generally less aggressive than conventional hard mineral abrasives, it can still alter susceptible surfaces. Compatibility testing is especially important for plated, coated, polished, or precision-machined components.
Is melamine better than glass bead for extrusion tooling?
Type III Melamine can offer an advantage when less aggressive cleaning is desired, particularly where glass bead impact could alter a tooling surface. However, neither media is universally superior. Cleaning rate, surface effects, media life, and total cost should be compared under actual operating conditions.
Is plastic blast media suitable for removing pigment buildup?
It may be effective for removing certain pigmented resin residues and deposits from compatible manufacturing tooling, making it relevant to color concentrate and masterbatch producers.
Can plastic blast media be reused?
Depending on the product, contamination, and blasting system, plastic media can often be reclaimed and reused. Media breakdown, particle-size changes, and contamination should be monitored.
What mesh size should be used for extruder screw cleaning?
Coarse grades such as 12/16 or 16/20 mesh may be suitable for certain substantial deposits and appropriately configured equipment. Finer grades may be considered for smaller geometries or different cleaning requirements. Actual selection should be established through testing.
Do you supply plastic blast media for industrial users?
Yes. SandblastingAbrasives.com supplies plastic blasting media for industrial cleaning, surface preparation, and manufacturing applications. Contact us regarding media type, mesh size, packaging, and industrial quantity requirements.
Looking for a reliable supplier of Type III Melamine or Type II Urea plastic blast media?
Whether you operate a polymer compounding plant, injection molding facility, extrusion line, recycling operation, or industrial tooling maintenance department, we can assist with product selection and pricing inquiries.
To help us recommend a suitable media for evaluation, please provide:
- Type of equipment or component being cleaned
- Polymer or residue being removed
- Tooling substrate and any surface coatings
- Current cleaning method or abrasive
- Preferred mesh size, if known
- Estimated monthly or annual abrasive usage
Contact SandblastingAbrasives.com today to discuss samples, industrial packaging, competitive quotations, and ongoing supply requirements.
Shop Plastic Blast Media: https://sandblastingabrasives.com/products/plastic-blast
